Technical Parameters:

• Frame thickness: 2.0mm

Size range:

• Sash width: 500mm–950mm
• Sash height: 1200mm–3500mm

Glass specification:

• 5mm + 20A + 5mm double clear tempered glass

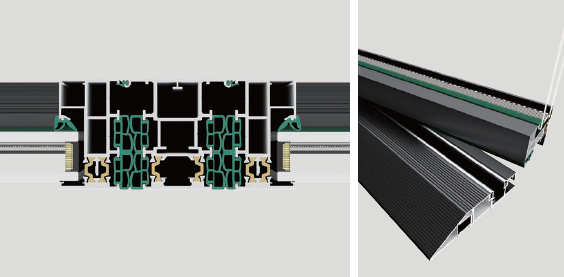

Heat insulation strip:

• 14.8mm

Product function:

• Sliding door
• Two tracks and two fans / Two tracks and four fans
• Three tracks with two panels and gauze / Three tracks with three panels
• Three tracks with four panels and gauze / Three tracks with six panels

Product advantage:

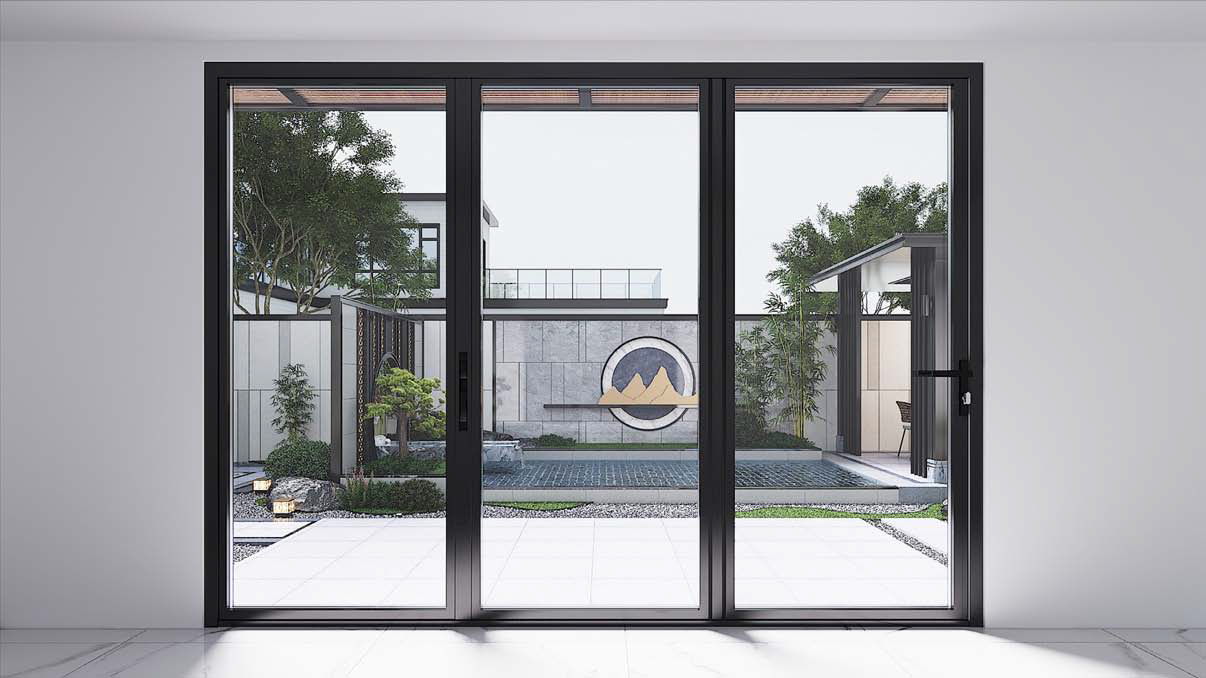

1. Multi-folding design with oversized opening, provides a clear and wide view
2. It is equipped with an anti-pinch design for safety and reliability
3. This series can be partially opened or fully expanded as needed for versatile and flexible adjustments
4. When closed it provides effective sound insulation and sealing performance
